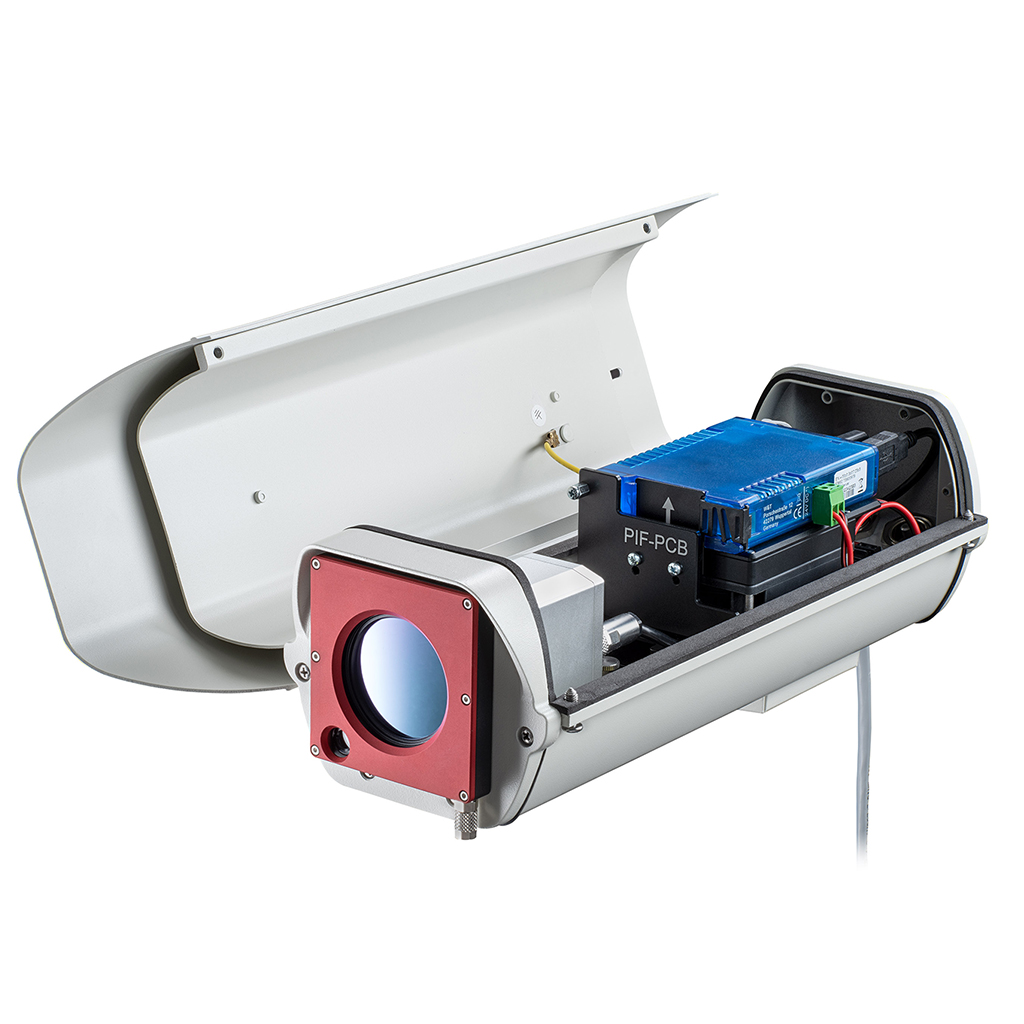

FeverTIR | Fever detection system
Thermography system for body temperature measurement | Fully compliant with IEC 80601-2-59
The Fever Detection System FeverTIR is designed to quickly and accurately measure people's body temperature without contact. The system alerts about people who exceed the established maximum body temperature, detecting possible cases of fever, one of the most obvious symptoms of Covid-19 infection, as well as similar contagious diseases. The system is fully compliant with IEC 80601-2-59 standard.
The system combines a high-precision thermal camera with a visible Full HD camera allowing body temperature measurement and the identification of people, with fast recording of the data obtained. The system provides an accuracy of ±0.5ºC and traceable calibration certificate is included. For higher accuracy in temperature measurement (±0.3ºC), there is the option of incorporating a black body source. In this case, a traceable calibration certificate is also included.
The included software provides a very intuitive interface for the control and configuration of temperature, alarms and recording functions, as well as for the analysis of the measured data. Its digital output module allows easy integration with other systems.

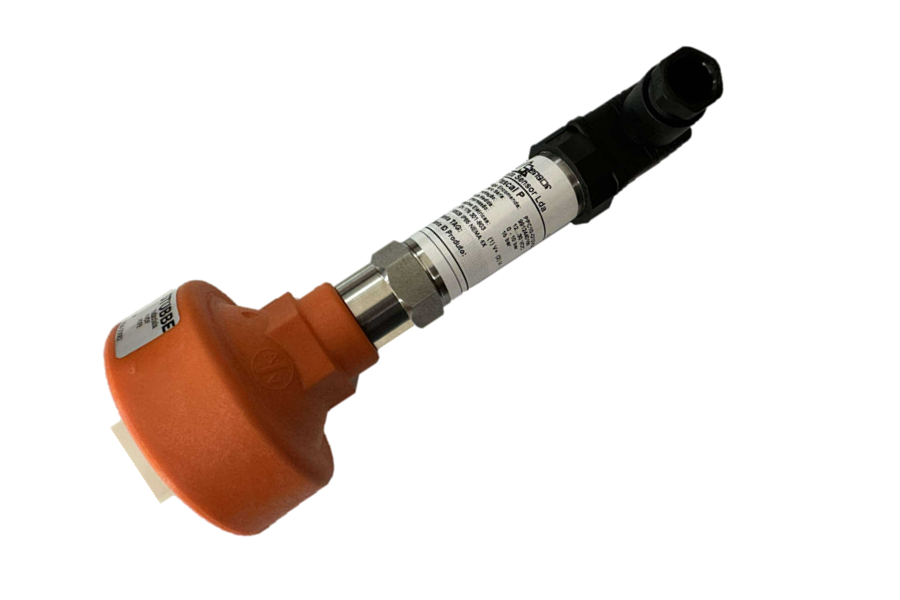

The T-Pascal P series process pressure transmitters

The T-Pascal P series of transmitters are intelligent pressure transmitters with good precision and stability. The model PPC10 has an excellent total accuracy of 0.25 %. Manufactured with piezoresistive measuring cell, digital temperature compensation, non-linearity correction technique, the entire product has compact size, light weight and wider pressure ranges for precise measurement and control of flow pressure. Standard construction totally in stainless steel 316L, configurable measurement ranges and overpressure limits up to 7.5X.
Depending on required ingress protection, can be electrically connected through a M12 plug IP67, or IP65 with connector complying with EN 175301-803-A. The output is factory scaled and calibrated in users required current or voltage range.
